IRIS Results Visualizer

A web-based visualizer for IRIS static analysis results stored in SARIF format.

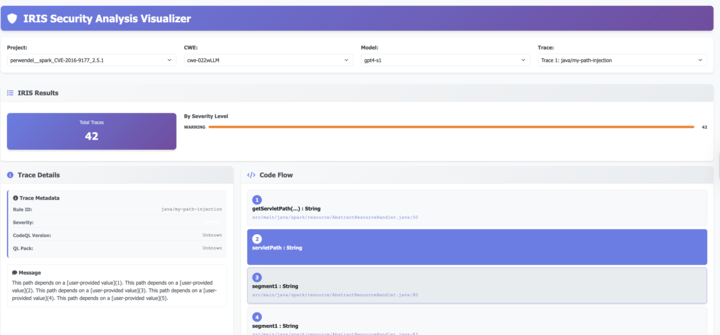

iris visualizer

Features

Interactive visualization of IRIS analysis results
Code flow visualization with clickable nodes
Source code display with line highlighting
Filtering by project, CWE, and trace
Configurable paths and settings
User-driven project selection
Project metadata panel (CVE, CWE, GitHub repo, commits)

Configuration

The visualizer uses a config.json file to configure paths and settings. The configuration file is automatically created with default values if it doesn't exist.

Configuration Options

{
    "server": {
        "port": 8000,
        "host": "localhost"
    },
    "paths": {
        "outputs_dir": "../output",
        "project_sources_dir": "../data/project-sources",
        "project_info_csv": "../data/project_info.csv"
    },
    "ui": {
        "max_source_code_height": "600px",
        "default_project": "perwendel__spark_CVE-2018-9159_2.7.1"
    }
}

Path Configuration

outputs_dir: Path to the directory containing IRIS analysis outputs (SARIF files)
project_sources_dir: Path to the directory containing project source code
project_info_csv: Path to the CSV file that stores project metadata (CVE, CWE, repo, commits)

Server Configuration

port: Port number for the HTTP server (default: 8000)
host: Host address for the server (default: localhost)

UI Configuration

max_source_code_height: Maximum height for the source code display area
default_project: Project that will be pre-selected when the UI first loads

Usage

Configure paths: Edit config.json to point to your outputs and source directories
Start the server: Run python3 server.py
Open in browser: Navigate to http://localhost:8000
Select a project: Choose a project from the dropdown to load its analysis results
Filter and explore: Use the CWE and model filters to explore specific vulnerabilities

User Flow

Project Selection: The visualizer starts with an empty state. Users must first select a project from the dropdown.
Data Loading: Once a project is selected, the visualizer loads all available SARIF files for that project.
Filtering: Users can then filter by CWE and model to focus on specific vulnerability types.
Trace Exploration: Click on traces to view detailed information, code flows, and source code.

Directory Structure

The visualizer expects the following directory structure:

output/
├── project1/
│   ├── cwe-352/
│   ├── cwe-352wLLM/
│   │   ├── results.sarif
│   │   ├── api_labels.json
│   │   └── ...
│   └── cwe-352wLLM-final/
|   └── ...
└── project2/
    ├── cwe-022/
    └── cwe-022wLLM/

data/project-sources/
├── project1/
│   ├── src/
│   │   └── main.java
│   └── ...
└── project2/
    └── ...

API Endpoints (server-side)

GET /api/projects - List available projects
GET /api/cwes - List available CWEs
GET /api/sarif/{path} - Get SARIF file content
GET /api/source/{project}/{file} - Get source code file
GET /api/project_metadata/{project_slug} - Get metadata (CVE/CWE/GitHub info) for a project
GET /api/models?project={slug}&cwe={id} - List models that produced results for a given project/CWE
GET /api/project_cwes?project={slug} - List CWEs that have results for a given project
GET /api/source_projects - List source code projects available on disk
GET /api/local_file/{project}/{relative_path}?line={n} - Render a source file in HTML with optional line highlight
GET /api/dir?project={slug}&path={subdir} - Directory listing for the in-browser file explorer
GET /api/config - Get client configuration

Customization

To use the visualizer with different data sources:

Update the paths section in config.json
Ensure your outputs directory follows the expected structure
Ensure your project sources directory contains the source code files referenced in the SARIF files

Troubleshooting

404 errors: Check that the paths in config.json are correct and the directories exist
Empty project list: Verify that the outputs directory contains the expected folder structure
Source code not loading: Ensure the project sources directory contains the referenced files
No data after project selection: Check that SARIF files exist for the selected project

Development

The visualizer consists of:

server.py - Python HTTP server with API endpoints
index.html - Main HTML interface
app.js - Frontend JavaScript logic
styles.css - CSS styling
config.json - Configuration file

File Structure

visualizer/
├── index.html          # Main HTML file
├── styles.css          # CSS styling
├── app.js             # Main JavaScript application
├── server.py          # Python HTTP server
└── README.md          # This file

API Endpoints (server-side)

The server provides the following API endpoints:

GET /api/projects - List all available projects
GET /api/cwes - List all available CWE types
GET /api/sarif/{path} - Get SARIF file content
GET /api/source/{project}/{file} - Get source code file
GET /api/project_metadata/{project_slug} - Get project metadata
GET /api/models?project={slug}&cwe={id} - List models for a project/CWE
GET /api/project_cwes?project={slug} - List CWEs for a project
GET /api/source_projects - List available source code projects
GET /api/local_file/{project}/{relative_path}?line={n} - Render a local file with optional line highlight
GET /api/dir?project={slug}&path={subdir} - Directory listing API

Configuration

The server is configured to look for:

Outputs directory: ../output (contains SARIF files)
Project sources: ../data/project-sources (contains source code)

You can modify these default paths in server.py:

OUTPUTS_DIR = "../output"
PROJECT_SOURCES_DIR = "../data/project-sources"

Data Format

The visualizer expects:

SARIF Files: Located in output/{project}/{run-id}/cwe-{cwe_id}/results.sarif
Source Code: Located in data/project-sources/{project}/

SARIF Structure

The visualizer parses SARIF files and extracts:

Vulnerability traces (results)
Code flows (data flow paths)
File locations and line numbers
Severity levels and rule information

Project Structure

output/
└── crate__crate_5.5.1_CVE-2023-51982_5.5.1/
    ├── cwe-352/
    │   ├── api_labels_gemini-1.5-flash.json
    │   ├── Spec.yml
    │   └── MySinks.qll
    ├── cwe-352wLLM/
    ├── cwe-352wLLM-final/
    └── cwe-352wLLM-posthoc-filter/

Usage Guide

1. Filtering Traces

CWE Type: Filter by specific vulnerability types (e.g., CWE-22, CWE-78)
Project: Filter by specific projects
Model: Filter by AI model used for analysis

2. Exploring Traces

Click on any trace in the left panel
View the trace description and severity
Examine the code flow steps
Click on flow steps to view source code

Source code is displayed with syntax highlighting
Vulnerable lines are highlighted in red
Click on code flow steps to jump to specific lines
Line numbers are shown for easy navigation

4. Understanding the Results

Code Flow: Shows the path of data from source to sink
Source Code: Displays the actual vulnerable code
Severity: Indicates the security impact level
Rule ID: Shows the specific vulnerability rule

Troubleshooting

Common Issues

Server won't start:
- Make sure Python 3 is installed
- Check that the outputs and project-sources directories exist
- Verify port 8000 is not in use
No traces shown:
- Check that SARIF files exist in the outputs directory
- Verify the file structure matches the expected format
- Check browser console for error messages
Source code not loading:
- Ensure project sources are in the correct directory
- Check that file paths in SARIF match source file locations
- Verify file permissions

Debug Mode

Open browser developer tools (F12) and check the console for:

API request errors
Data loading issues
JavaScript errors

The visualizer exports a global object window.irisVisualizer for debugging:

// Access loaded data
console.log(window.irisVisualizer.allTraces);
console.log(window.irisVisualizer.currentTrace);

Development

Adding New Features

New Filter Types: Add to the HTML and update populateFilters() in app.js
